Kuvaus

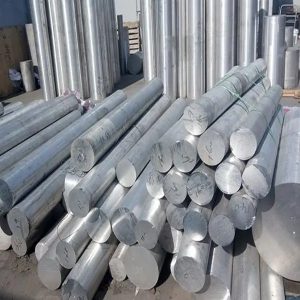

7075 T651 Aluminum round bar is a commercially available strong alloy with excellent mechanical properties and good corrosion resistance.
Its yield strength is close to the tensile strength, the yield ratio is high, and the specific strength is also high, but the plasticity and high temperature strength are relatively low.
This alloy performs well at room temperature and in environments below 120°C, making it particularly suitable for manufacturing load-bearing structural parts.
7075 T651 aluminum rod also has the characteristics of easy processing and good wear resistance, which makes it widely used in aerospace, muotin käsittely, mekaaniset laitteet, tooling fixtures and other fields. Especially in the aerospace field, 7075 T651 aluminum rod has become one of the important structural materials.
7075 T651 Aluminum Round Bar or as also known as AA7075 is an aluminium alloy. The primary alloying element of the 7075A Aluminum T6 Spring Steel Bars is zinc.
Al7075 T6 ASME SB 211 AA7075-T651 Aluminum Round Bar Manufacturer and Aluminium Flat bar supplier RAYIWELL MFG is a professional factory of alumiinilevy, alumiinitanko, tai alumiinilevy Kiinassa.
7075 (UNS A97075) is an aerospace aluminum round bar with cold finished or extruded aluminum wrought alloy with high strength, adequate machinability and improved stress corrosion control. Fine grain control results in good tool wear
7075 is one of the highest strength aluminum alloys. It has good fatigue strength and average machinability. Often used where parts are highly stressed. It is not weld able and has less corrosion resistance than other aluminum alloys. The mechanical properties depend on the temper of the material. Commonly used in the bicycle industry, aircraft structures, and in rifles for the American military. We stock 7075-T651, 7075-T6511, 7075-T7351, 7075-T3511 and 7075-T76511.
- Mitat : ASTMA, KUTEN MINÄ, AMS
- tekniset tiedot : ASTM B211, AMS 4122, 4123, 4124, 4186, AMS-QQ-A-225/9, ASTM B221, AMS 4154, 4166, 4167, AMS-QQ-A-200/11
- Metalliseos : 7075 – T6
- Koko : 1/4” Dia – 16” Dia
- Form : Square , Pyöristää , Hex , Flat, Wire In Black & Bright Finish
- Pituus : Random, Fix & Cut Length
- Finish : Kirkas, Polish & Musta
Alumiinilevyt / Kilpiä 7075-T6/T651 käytetään yleensä ilmailussa, sotilaallinen, ja autoteollisuuden sovelluksia. 7075 alumiini on vahvin alumiini, monien terästen lujuudella, säilyttäen alumiinin kevyet ominaisuudet ja korroosionkestävyyden.
Metalliseos | Luonne | Paksuus | Leveys |
7075 | T651 | 4-260mm | 1200-3800mm |
7075 | T7651 | 4-260mm | 1200-3800mm |
7075 | T7351 | 4-260mm | 1200-3800mm |
Mekaaniset ominaisuudet
Seostila | Suunta | Paksuus (mm) | Vetolujuus | saanto Vahvuus | Breaking Elongation | standardi |
7075-T651 | LT | 6-260 | 570-590mpa | 495-515mpa | 10-13.5 | GB/T3880 |
7075-T7651 | LT | 6-102 | 550-560mpa | 480-490mpa | 10.5-12.5 | AMS4045K |
7075-T7351 | LT | 6-102 | 500-520mpa | 420-435mpa | 10-12.5 | AMS4078 |
What Are the Key Properties of 7075 t651 Alumiininen pyöreä tanko that Make Them Ideal for Aerospace Applications?
The key properties of 7075 T651 aluminum round bars that make them ideal for aerospace applications are:
1. Voimakas: 7075 round bars have a high tensile strength, which makes them suitable for withstanding high stress and pressure in aerospace applications. They have a yield strength of 73,000 psi and a tensile strength of 83,000 psi.
2. Kevyt: Despite their high strength, 7075 round bars are relatively lightweight compared to other metals. This is crucial in aerospace applications where weight reduction is essential to enhance fuel efficiency and overall performance.
3. Korroosionkestävyys: 7075 round bars have excellent corrosion resistance, particularly against atmospheric conditions and seawater. This property is vital in aerospace applications where the material may be exposed to harsh environments.
4. Heat treatability: 7075 round bars can be easily heat treated to enhance their mechanical properties, such as strength and hardness. This flexibility allows manufacturers to optimize the material’s performance to meet specific aerospace requirements.
5. Työstettävyys: Although 7075 round bars are known for their high strength, they still possess good machinability. This makes them easier to shape, cut, and drill, enabling efficient manufacturing processes in aerospace applications.
6. Fatigue resistance: 7075 round bars exhibit excellent fatigue resistance, allowing them to withstand repeated loading and cyclic stresses without failure. This property is crucial in aerospace applications where components must endure constant stress and vibrations.
7. Hitsattavuus: 7075 round bars have good weldability, which enables them to be joined with other materials or components in aerospace manufacturing processes. This property facilitates the construction of complex structures and assemblies.
Yleensä ottaen, the combination of high strength, kevyt, korroosionkestävyys, lämpökäsiteltävissä, työstettävyys, väsymiskestävyys, and weldability makes 7075 aluminum round bars an ideal choice for aerospace applications.
-
-
-
